Equipment & Products

Tools Built for the Toughest Pipes on Earth

Every piece of TXHydrojet equipment is selected and field-tested for reliability in extreme conditions. From confined-space crawlers to 4K pan-tilt cameras, our gear gets the picture — whatever the line.

Flagship System

Command Kit Pro-X

New 2025
Command Kit Pro-X integrated CCTV inspection system

Command Kit Pro-X

Integrated 4K Crawler Inspection System

The industry's most complete turnkey inspection solution. Combines our TX-4K Pro camera head, Titan-200 crawler platform, ruggedised field tablet, and WinCan reporting software into one deployment-ready kit that fits in a single transit case.

Resolution
4K UHD / 8 MP
Pipe Range
150 – 1200 mm
Cable Length
300 m standard
IP Rating
IP68 (3 m depth)
Request Quote
Camera Heads

Precision Optics for Every Application

4K UHD

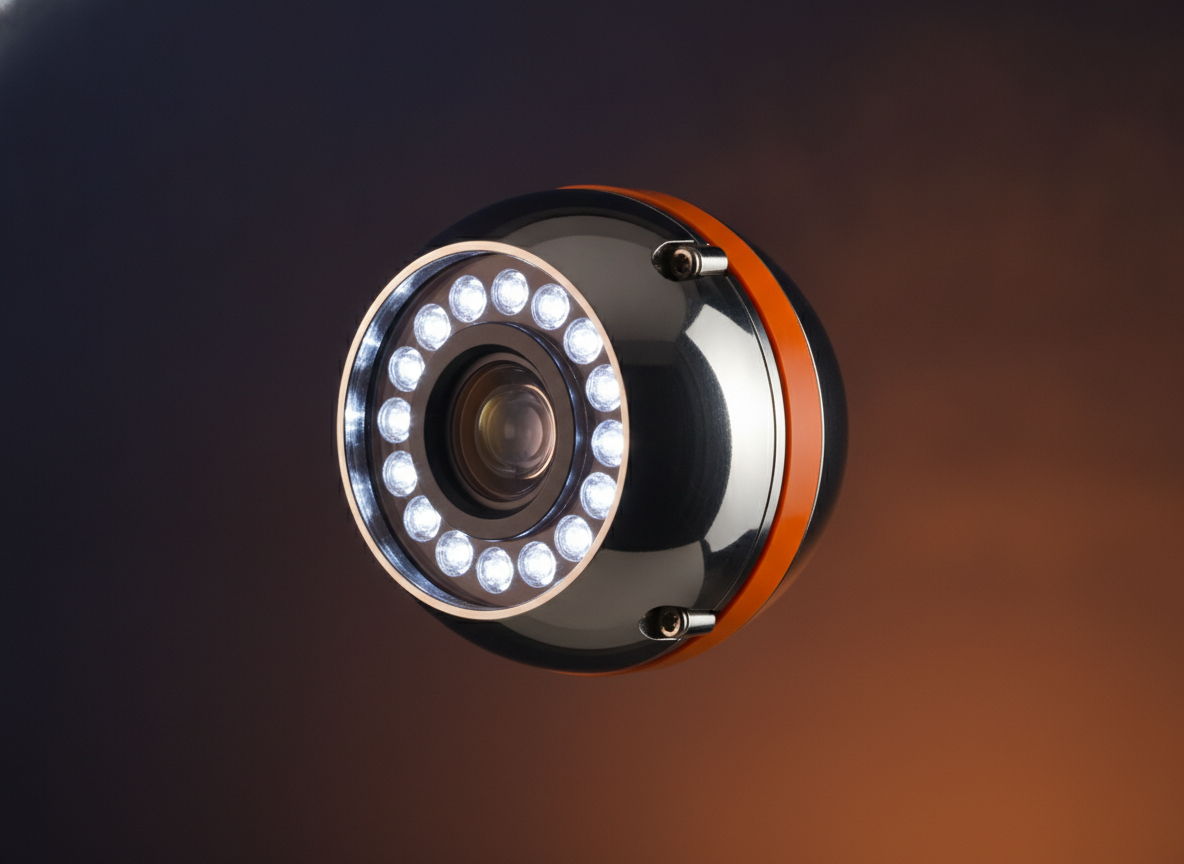

TX-4K Pro camera head with LED ring

TX-4K Pro

Full 4K inspection with 48-LED illumination ring, 360° pan-tilt, and live PACP coding. The go-to head for municipal contracts.

8 MP360° PanIP684K Live
HD Compact
TX-HD Compact 63mm pipe inspection camera

TX-HD Compact

63 mm profile fits 6-inch laterals with ease. Full 1080p HD with self-levelling lens and forward-looking sonar option.

1080p63mm ODSelf-level
Low-Light
TX-LB 2400 starlight low-light inspection camera

TX-LB 2400

Starlight sensor with 0.001 lux rating for unlit large-bore mains. 360° continuous rotation, 100 m cable option.

Starlight0.001 lux360°
Lateral
TX-Lateral Pro side-launch inspection camera

TX-Lateral Pro

Flip-out side-launch camera for lateral connections. Rotates 0–270°, 50 m push-cable, 1080p recording.

Side-launch270° flip50m cable
Zoom
TX-Zoom 10x optical zoom inspection camera

TX-Zoom 10x

10× optical zoom with digital stabilisation for long-distance defect investigation. 12 MP still capture at full zoom.

10× Optical12 MPStabilised
Sonar
TX-Sonar 360 acoustic profiling inspection head

TX-Sonar 360

Full 360° acoustic profiling for submerged or debris-filled pipes. Generates cross-section maps at 200 frames/sec.

360° SonarSubmerged200fps
0
LED illuminators per head
0
Metres of cable standard
0
Megapixels, 4K head
0
Product families in fleet
Crawler Platforms

Driven Platforms for Every Diameter

Scout Series
Scout-150 compact 4-wheel CCTV crawler

Scout-150

Ultra-compact crawler for 6–16 inch pipes. Spring-loaded wheel arms auto-centre in circular and egg-shaped profiles.

150–400mmAuto-centre0.8 m/s
Titan Series
Titan-600 heavy-duty 6-wheel pipe crawler

Titan-600

Heavy-duty 6-wheel drive for 8–48 inch mains. 25 kg payload, modular chassis accepts laser profiling and sonar add-ons.

200–1200mm25kg payloadModular
Leviathan
Leviathan-2400 tracked tunnel inspection robot

Leviathan-2400

Tracked drive for 24–96 inch culverts and tunnels. Differential steer, 80 kg payload, satellite telemetry optional.

600–2400mmTrackedSatellite
Inspection Software

Field to Report, Seamlessly

DEFECTS: 14
PACP: LIVE
GIS: SYNC
SEG BUF-047 ►
62%

TXView Pro — PACP Reporting Platform

Real-time PACP / MACP / LACP grading, GIS export, automated defect detection powered by AI vision, and client portal delivery — all in a single field-to-office workflow.

  • Live PACP / MACP / LACP defect coding with built-in codebook reference
  • AI-assisted defect detection — highlights joints, cracks, infiltration, roots
  • One-click GIS shapefile and Esri integration export
  • Cloud sync to client portal — reports delivered within 24 hrs of inspection
  • Asset management module tracks repair priorities and maintenance history
  • Works offline in the field; syncs on reconnect
Accessories & Add-Ons

Complete Your Kit

🔌

Cable Drum — 300 m / 600 m

Pre-spooled kevlar-armoured cable with integrated distance counter, auto-rewind motor, and fibre-optic data channel.

SKU: TX-CDR-300 / TX-CDR-600
💻

Field Control Unit

IP65 ruggedised touchscreen, 1000-nit display for daylight use, 12-hr battery, runs TXView Pro natively.

SKU: TX-FCU-2025
📡

CUES LAN Wireless Hub

802.11ac bridge for cable-free control up to 500 m. Dual-band, AES-256 encrypted, integrates with TXView cloud.

SKU: TX-WHB-AX
🔦

Supplemental LED Array

Clip-on 24-LED ring for extra illumination in large-bore or silted pipes. 6000 K daylight-balanced output.

SKU: TX-LED-24
📏

Laser Profiler Module

Attaches to Titan crawler. Generates millimetre-accurate cross-section profiles with deformation mapping.

SKU: TX-LPM-360
🧲

Magnetic Wheel Kit

Replaces standard wheels for steel/DI pipe inspection. Prevents slipping on smooth inverts at any incline.

SKU: TX-MWK-S
🧳

Transit Case Set

Pelican-standard moulded foam cases for camera head, crawler, and control unit. Airline-compliant TSA locks.

SKU: TX-TC-3PC
🛠️

Field Service Kit

O-rings, seal grease, replacement LEDs, Allen keys, and a waterproof parts tray. Fits in a belt pouch.

SKU: TX-FSK-STD

Configure Your Inspection Fleet

Our equipment specialists will match the right crawler, camera, and software stack to your pipe inventory and project volume.

Get Custom Quote View Tech Specs →
